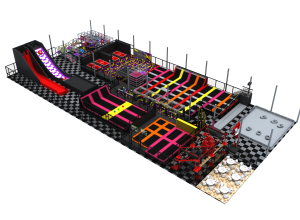

trampoline park equipment
Model: VS6-190301-1980A-13-29
Parameters: 1、The frame is connected with screw fasteners.
2、Upright posts: Q235 galvanized rectangular steel tube, 80×80×2.0 mm.
3、Connecting frame: Q235 galvanized rectangular steel tube, 50×80×2.5 mm.
4、Reinforcement linkage: Q235 galvanized rectangular steel tube, 40×40×1.5 mm.
5、Jumping mat: Made of PP material with fiber count of 500D×500D (Test standard: GB 6675.4-2014).
6、Trampoline mat: High-density EPE pearl cotton, 70 mm thickness (Test standard: GB 6675.4-2014); Plato PVC-coated mesh fabric, 0.52 mm thickness, warp/weft density 1300×1300D, compliant with EU standard EN 71-2:2020 Toy Safety Part 2: Flammability, Clauses 4.1 and 4.4.
7、Springs: Carbon steel wire 82B, length 180 mm (Test standards: GB/T 20125-2006, GB/T 20123-2006).

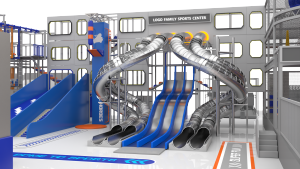

OEM Indoor Playground
Model: VS1-250519-2250-3-60
Parameters: 1、Upright posts: Galvanized steel tube φ48×2 mm.
2、Couplers: Cast steel 48# couplers (Test standard: GB/T 228.1-2021).
3、Protective net: Polyethylene (PE) safety net, mesh size 30×30 mm (Test standard: GB 6675.4-2014).
4、Tie a rope: Polyamide (PA) nylon ties.
5、plastic ties: Polyamide (PA) nylon buckles.
6、Protective sleeves: PVC sleeves with PVC outer layer + EPE pearl cotton inner lining.

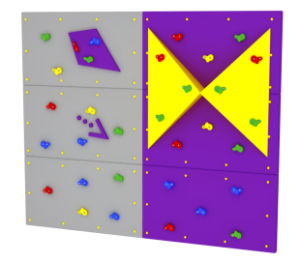

Climbing Wall for Playground
Model: VS-2659
Parameters: 1、Frame: Made of Q235 galvanized rectangular steel tube, 40×40×1.5 mm.
2、Climbing wall padding: 15 mm plywood (Inspection standard: GB/T 5849-2006 (Plywood); formaldehyde emission (9–11 L), internal density deviation, moisture content, static bending strength, modulus of elasticity, and internal bond strength meet the E0 grade requirements of GB/T 5849-2006); high-density EPE pearl cotton, 10 mm thickness (Test standard: GB 6675.4-2014); Plato PVC-coated mesh fabric, 0.52 mm thickness, warp/weft density 1300×1300D, compliant with EU standard EN 71-2:2020 Safety of Toys — Part 2: Flammability, Clauses 4.1 and 4.4.

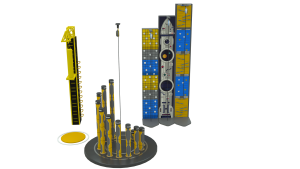

Indoor rope course Equipment
Model: VS1-250522-1900B-30
Parameters: 1、Frame: Made of Q235 galvanized rectangular steel tubes, 50×80×3.0 mm, 40×80×2.0 mm, and 40×40×2.0 mm (Test standard: GB/T 228.1-2021).
2、Surface: 15 mm plywood (Inspection standard: GB/T 5849-2006 (Plywood); formaldehyde emission (9–11 L), internal density deviation, moisture content, static bending strength, modulus of elasticity, and internal bond strength meet the E0 grade requirements of GB/T 5849-2006); 2.0 mm thick printed PVC flooring; climbing holds; and electronic timer.
3、Safety mat: 28 kg/m³ foam, 10 mm thickness (Test standard: GB 6675.4-2014); 140 mm thick EPE pearl cotton; Plato PVC-coated mesh fabric (printed), 0.52 mm thickness, warp/weft density 1300×1300D, compliant with EU standard EN 71-2:2020 Safety of Toys — Part 2: Flammability, Clauses 4.1 and 4.4.

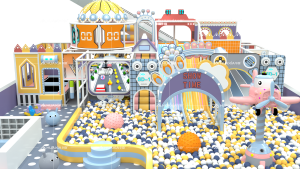

family entertainment center equipment
Model: VS1-25011002-230-2-49
Parameters: 1、Upright posts: Galvanized steel tube φ48×2 mm.
2、Couplers: Cast steel 48# couplers (Test standard: GB/T 228.1-2021).
3、Protective net: Polyethylene (PE) safety net, mesh size 30×30 mm (Test standard: GB 6675.4-2014).
4、Tie a rope: Polyamide (PA) nylon ties.
5、plastic ties: Polyamide (PA) nylon buckles.
6、Protective sleeves: PVC sleeves with PVC outer layer + EPE pearl cotton inner lining.

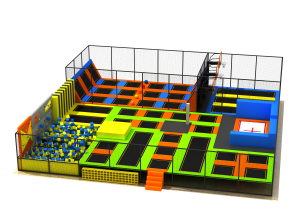

Indoor Trampoline Park
Model: VS6-180326-400a-2-40
Parameters: 1、The frame is connected with screw fasteners.
2、Upright posts: Q235 galvanized rectangular steel tube, 80×80×2.0 mm.
3、Connecting frame: Q235 galvanized rectangular steel tube, 50×80×2.5 mm.
4、Reinforcement linkage: Q235 galvanized rectangular steel tube, 40×40×1.5 mm.
5、Jumping mat: Made of PP material with fiber count of 500D×500D (Test standard: GB 6675.4-2014).
6、Trampoline mat: High-density EPE pearl cotton, 70 mm thickness (Test standard: GB 6675.4-2014); Plato PVC-coated mesh fabric, 0.52 mm thickness, warp/weft density 1300×1300D, compliant with EU standard EN 71-2:2020 Toy Safety Part 2: Flammability, Clauses 4.1 and 4.4.
7、Springs: Carbon steel wire 82B, length 180 mm (Test standards: GB/T 20125-2006, GB/T 20123-2006).

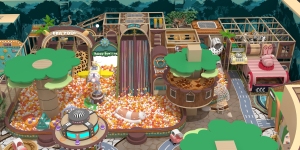

Kids Play Structure
Model: VS1-250414-780-D1-77
Parameters: 1、Upright posts: Galvanized steel tube φ48×2 mm.
2、Couplers: Cast steel 48# couplers (Test standard: GB/T 228.1-2021).
3、Protective net: Polyethylene (PE) safety net, mesh size 30×30 mm (Test standard: GB 6675.4-2014).
4、Tie a rope: Polyamide (PA) nylon ties.
5、plastic ties: Polyamide (PA) nylon buckles.
6、Protective sleeves: PVC sleeves with PVC outer layer + EPE pearl cotton inner lining.

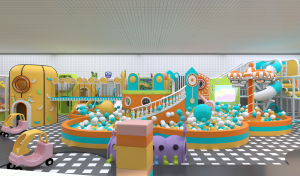

Indoor Playground
Model: VS1-230518-4-60
Parameters: 1、Upright posts: Galvanized steel tube φ48×2 mm.
2、Couplers: Cast steel 48# couplers (Test standard: GB/T 228.1-2021).
3、Protective net: Polyethylene (PE) safety net, mesh size 30×30 mm (Test standard: GB 6675.4-2014).
4、Tie a rope: Polyamide (PA) nylon ties.
5、plastic ties: Polyamide (PA) nylon buckles.
6、Protective sleeves: PVC sleeves with PVC outer layer + EPE pearl cotton inner lining.

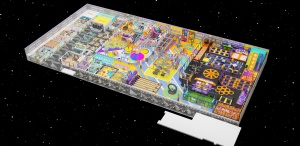

Indoor Playground Equipment
Model: VS1-250503
Parameters: Main Frame:
The main frame is mostly made of galvanized steel pipes of φ48mm, thickness 2.0mm, equipped with anti-collision sleeves of 15mm outer diameter. For expanded structures, the main frame is stronger, with pipes of φ140mm diameter and 4.0mm thickness.
Platforms & Slides:
Platforms are often made of 800×800mm cold-rolled steel plates or perforated steel plates of 91×91cm or 116×116cm. The “devil slide” (steep slide) is 2 meters wide, and its steel frame consists of square tubes of 4×4cm and 4×8cm.
Soft Play Padding Process:
The soft play platform uses a composite structure of “multilayer board (1.8cm) + EPE foam (2cm) + PVC leather (0.45mm)”, providing both support and cushioning.
Trampoline System:
Standard trampoline mat: 1800×1800mm, static load capacity 600kg / dynamic load capacity 130kg. Professional trampoline mat: 2130×4260mm, using stronger nylon webbing. Safety is ensured by anti-collision fences and strict material standards.
Fasteners:
All are made of stainless steel, some also come with protective plastic caps or anti-loosening washers to prevent children from contacting them directly.
Age Range & Coverage:
Mainly for children aged 3–15 years. Some “soft play” products are suitable for ages 2–8 years. Newer trampoline parks cover all age groups.
Durability & Environmental Friendliness:
Slides are made of imported engineering plastics or 196 resin. Carpet wear resistance reaches 80,000 rubs. The wood used is mainly corrosion-resistant and durable Scots pine.
Company Gallery

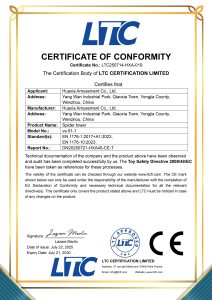

Certifications & Awards
